Allen-Bradley 100-DL630 SMC-Flex Terminal Lugs

Product Overview

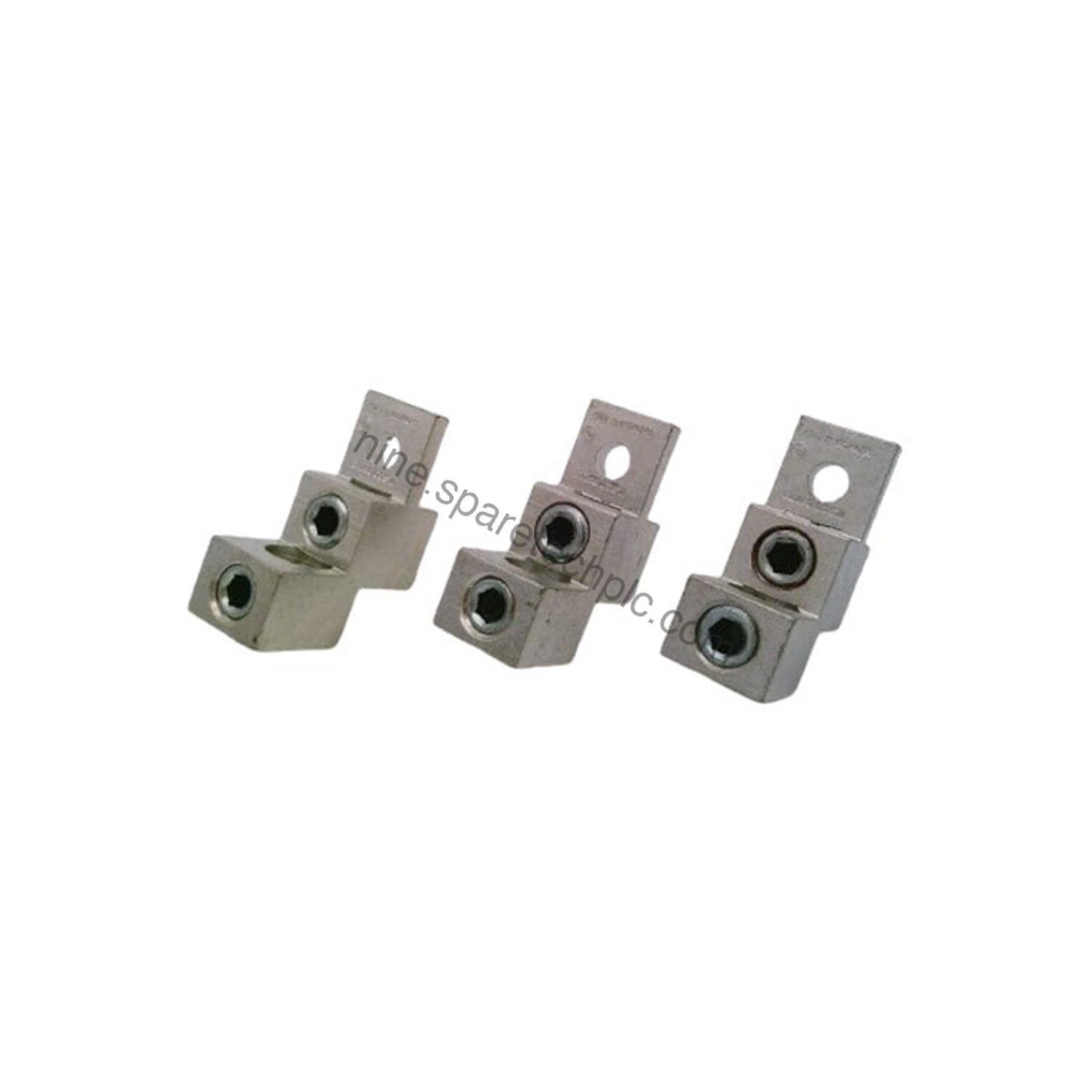

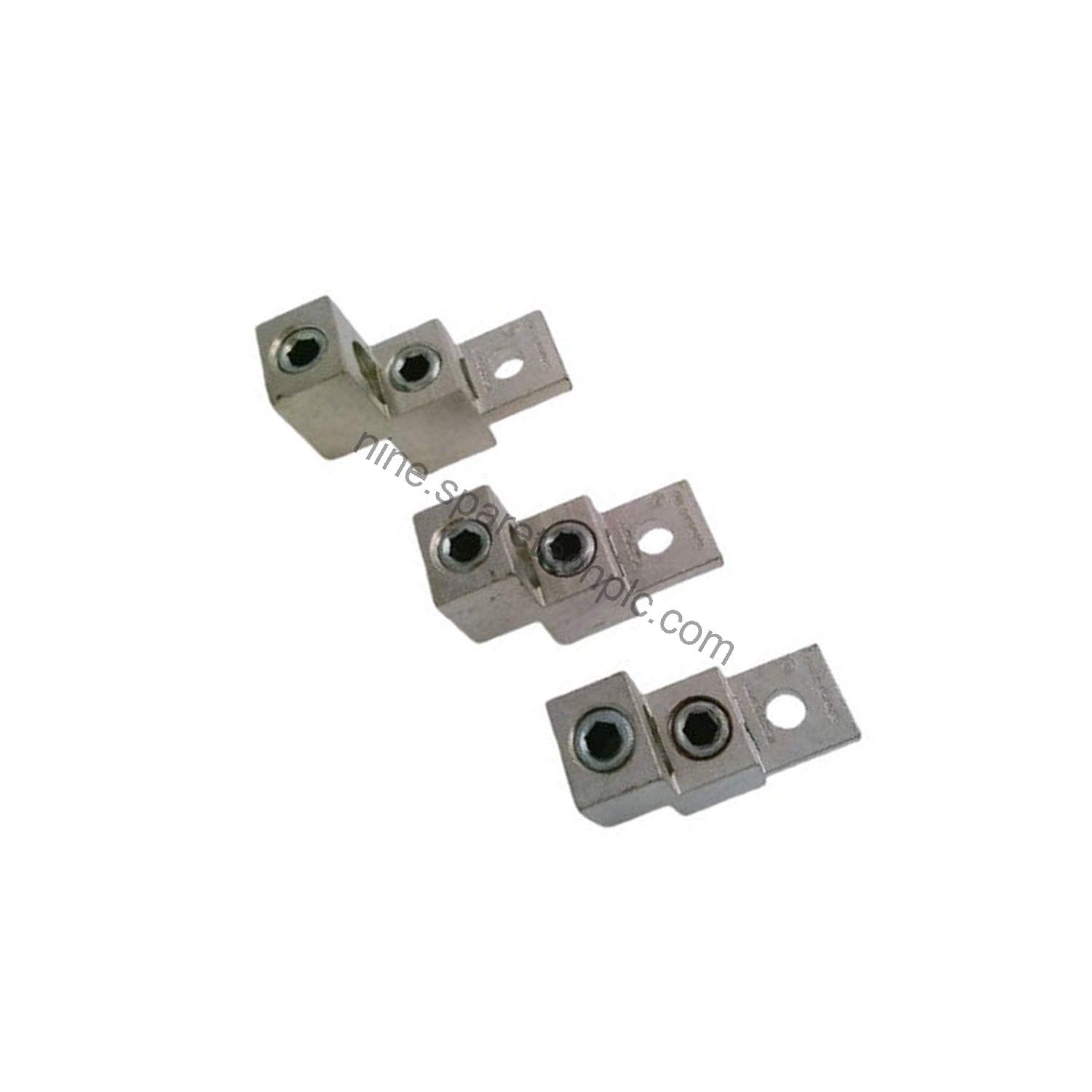

As a maintenance engineer, you know that the integrity of every electrical connection is non-negotiable. The Allen-Bradley 100-DL630 terminal lugs from the SMC-Flex series are designed to deliver that reliability. These metal lugs provide secure, low-resistance terminations for your motor control and automation circuits. With a NEMA 1 enclosure rating and IP20 protection, they are built to perform in typical industrial control panels and non-harsh environments. Whether you're replacing worn components or building a new control system, the 100-DL630 ensures your wiring stays solid, reducing downtime and maintenance headaches.

These lugs are rated for ambient temperatures from 0 to 40 °C and can handle up to 95% non-condensing humidity, making them suitable for a wide range of plant floor conditions. Their through-hole mounting design simplifies installation, allowing for secure attachment to bus bars or terminal blocks. Weighing in at 5 lbs, this lug kit is substantial and built to last.

Key Features

• Genuine Allen-Bradley Quality: Factory-original SMC-Flex series terminal lugs, ensuring compatibility and long service life.
• Robust Metal Construction: Made from quality metal for excellent conductivity and mechanical strength.
• NEMA 1 Enclosure Rating: Suitable for indoor, non-harsh industrial environments, protecting against incidental contact.
• IP20 Protection Class: Guards against solid objects larger than 12 mm, offering moderate dust and touch protection.
• Wide Environmental Tolerance: Operates reliably from 0 °C to 40 °C and up to 95% non-condensing humidity.
• Through-Hole Mounting: Simplifies installation and ensures a secure, vibration-resistant fit.
• 1000 MSL Installation Height: Rated for use up to 1000 meters above mean sea level, covering most industrial sites.
• Complete Kit: Includes all necessary lugs for your application, reducing procurement time.

Technical Specifications

| Parameter | Value |

|-----------|-------|

| Manufacturer | Allen-Bradley |

| Product Type | Terminal Lugs |

| Product Line | SMC-Flex |

| Part Number | 100-DL630 |

| UPC | 781180489112 |

| Weight | 5.00 lbs (2.27 kg) |

| Kit Type | Lugs |

| Material | Metal |

| Enclosure Rating | NEMA 1 |

| Protection Class | IP20 |

| Maximum Ambient Temperature | 40 °C |

| Minimum Ambient Temperature | 0 °C |

| Max. Operating Humidity | 95% (non-condensing) |

| Max. Storage Humidity | 95% (non-condensing) |

| Allowable Installation Height | 1000 MSL |

| Mount Type | Through Hole |

Applications

The 100-DL630 terminal lugs are ideal for use in:

• Motor control centers (MCCs) and motor starters
• Industrial control panels and enclosures
• Power distribution and connection points
• Automation and process control systems
• HVAC and pumping applications
• Anywhere reliable, secure electrical terminations are required

These lugs are particularly well-suited for environments that are clean, dry, and temperature-controlled, such as manufacturing plants, water treatment facilities, and commercial buildings.

Why Choose UbestNine?

At UbestNine, we specialize in providing new and refurbished industrial automation parts, and we understand the importance of uptime. Here's why maintenance professionals trust us:

• Quality Assurance: Every part, including the 100-DL630, is tested to meet OEM specifications. We back our products with a 12-month warranty for your peace of mind.
• Fast Shipping: We know downtime is costly. We ship from stock to get your operation running again quickly.
• Competitive Pricing: Get genuine Allen-Bradley parts at prices that respect your maintenance budget.
• Expert Support: Our team has hands-on industrial experience. Call us for help with selection, compatibility, or installation tips.
• Easy Returns: If a part doesn't fit or meet your needs, our hassle-free return policy makes it right.

FAQ

Q: What is the difference between NEMA 1 and IP20 ratings?

A: NEMA 1 is an enclosure rating indicating indoor use with protection against incidental contact with enclosed equipment. IP20 is an international rating that protects against solid objects larger than 12 mm (like fingers) but offers no protection against water. Both ratings confirm the 100-DL630 is suitable for dry, indoor industrial environments.

Q: Can I use these lugs in outdoor applications?

A: No. The NEMA 1 and IP20 ratings are for indoor, non-harsh environments. For outdoor use, you would need a higher-rated enclosure (e.g., NEMA 3R or IP65). Always check your application's environmental requirements.

Q: What is the maximum temperature range for the 100-DL630?

A: The lugs are rated for ambient temperatures from 0 °C to 40 °C. Operating outside this range may affect performance and safety.

Q: How do I install the 100-DL630 lugs?

A: The lugs feature a through-hole mount design. Simply align the hole with your mounting stud or bus bar and secure with the appropriate hardware (not included). Ensure the connection is tight and free from contaminants for optimal conductivity.

Q: Is the 100-DL630 compatible with other SMC-Flex components?

A: Yes, these lugs are part of the SMC-Flex series and are designed to work seamlessly with other Allen-Bradley SMC-Flex products. However, always verify compatibility with your specific equipment.

---

Ready to secure your electrical connections? Order the Allen-Bradley 100-DL630 from UbestNine today and keep your operations running smoothly.
