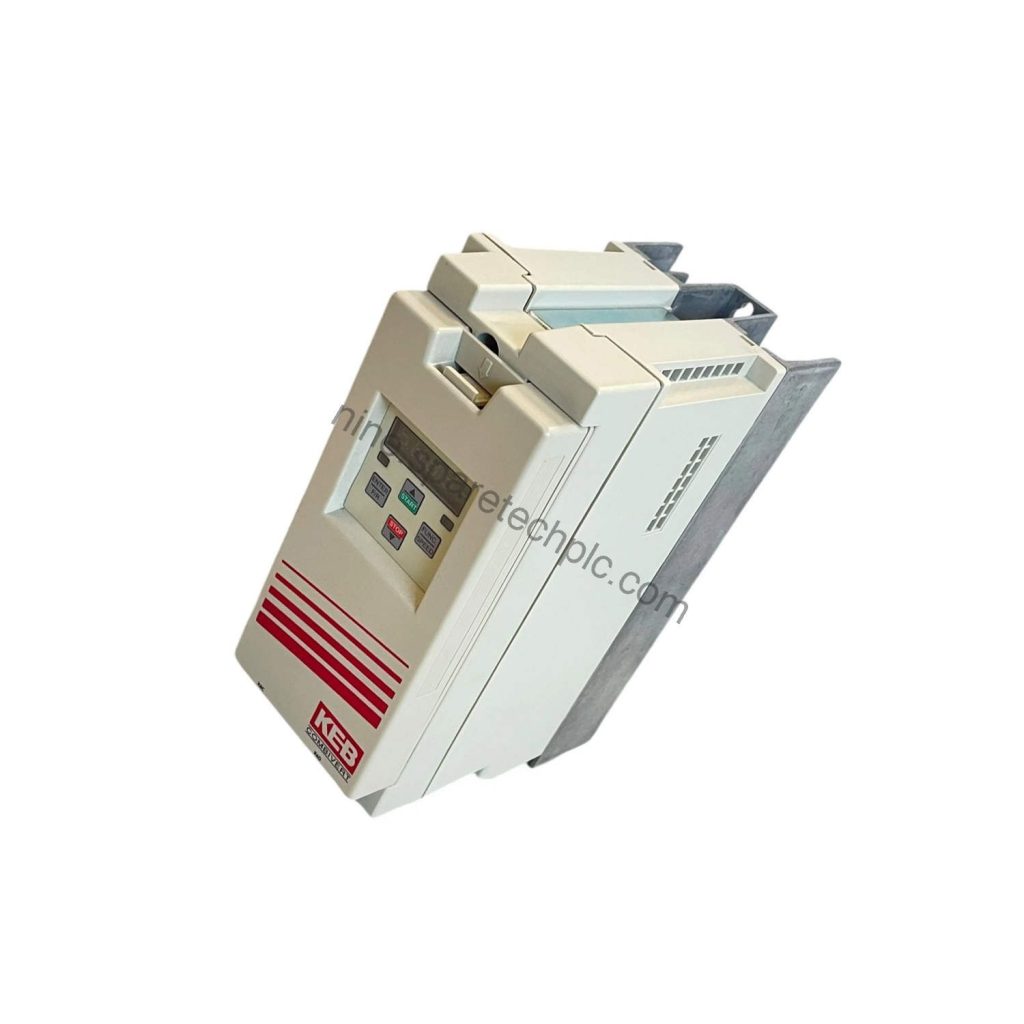

KEB 07F5C1B-3B0A AC Drive 0.75kW 400V 3-Phase

Product Overview

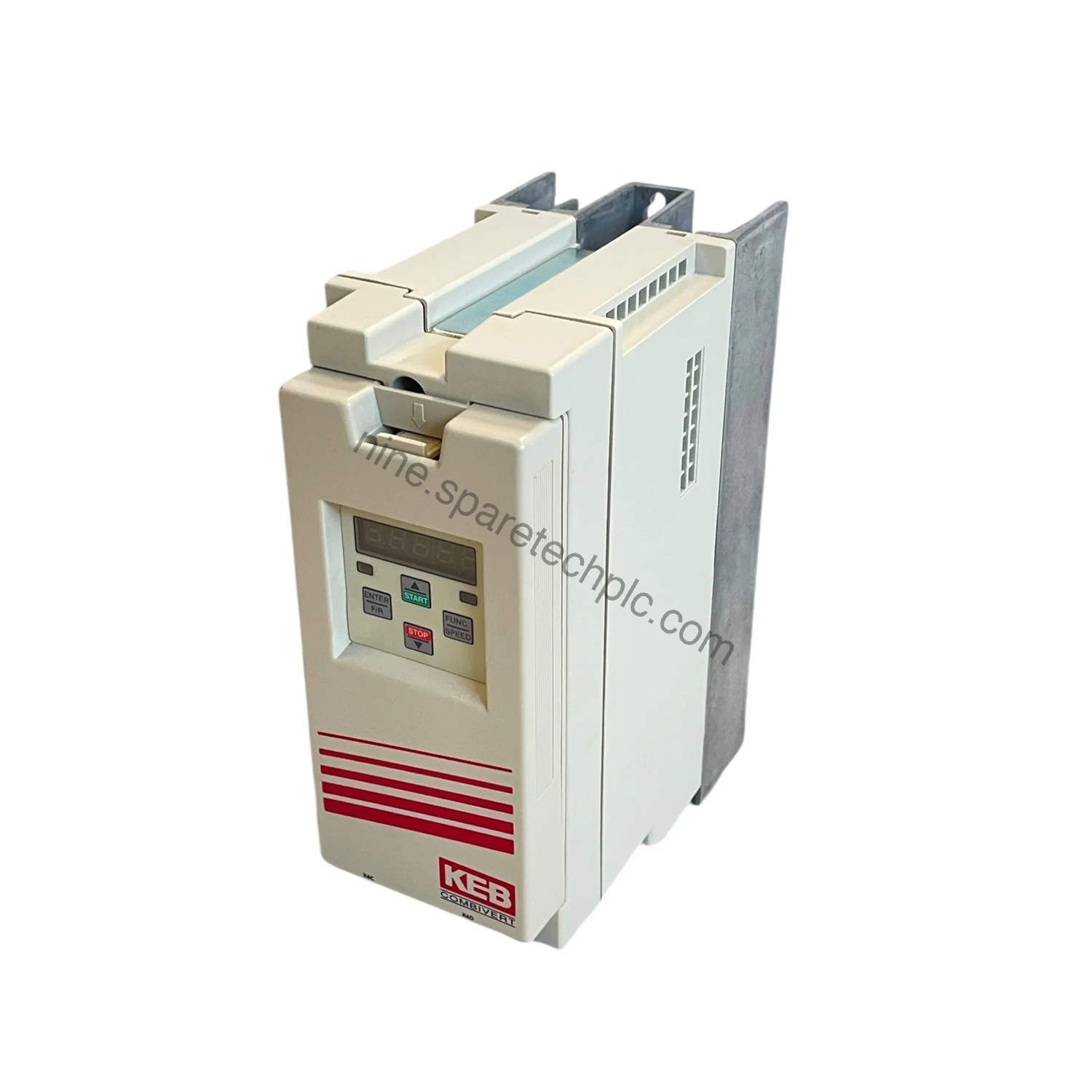

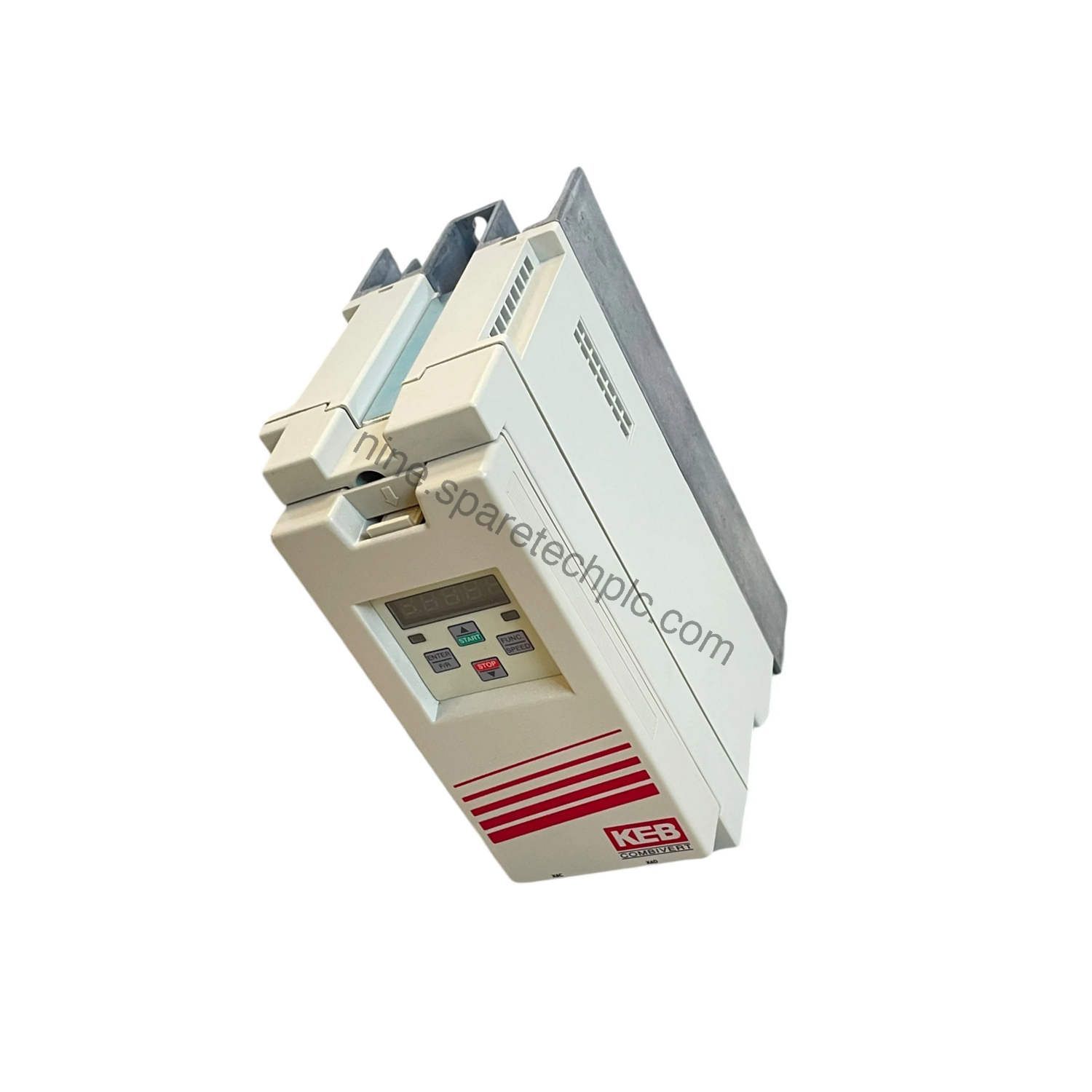

The KEB 07F5C1B-3B0A is a compact, general-purpose AC drive from the renowned Combivert F5 series. This 0.75 kW, 3-phase, 400V drive delivers reliable variable speed control for a wide range of industrial applications. With its flexible input range (305-440 VAC) and high output frequency capability (up to 1600 Hz), it is suitable for both standard and high-speed motor applications. The included digital keypad operator (00.F5.060-1000) provides easy setup and local control.

As an automation professional, you need a drive that combines performance, flexibility, and durability. The KEB 07F5C1B-3B0A delivers exactly that. Its compact design allows for easy integration into existing control panels, while its comprehensive I/O (8 digital inputs, 2 analog inputs, 2 analog outputs, 2 relay outputs) ensures seamless connectivity with PLCs and sensors. Whether you are upgrading an existing system or building a new one, this drive offers the features you need without unnecessary complexity.

Key Features

• Compact and robust design – IP20 enclosure suitable for standard industrial environments.
• Wide input voltage range – Accepts 305-440 VAC at 50/60 Hz, making it tolerant of voltage fluctuations.
• High output frequency – Up to 1600 Hz, ideal for high-speed spindle or centrifuge applications.
• Integrated EMC filter – Helps meet electromagnetic compatibility requirements, reducing installation costs.
• Sensorless vector control – Provides precise torque and speed control without the need for an encoder.
• Flexible communication – RS232/RS485 port supports Modbus RTU for easy integration into automation networks.
• Extensive I/O – 8 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs for versatile control.
• Digital keypad operator – 5-digit LED display with RS232/RS485 port for programming and monitoring.
• Wide operating temperature range – Suitable for most industrial environments (see specifications).

Technical Specifications

| Parameter | Value |

|------------|-------|

| Manufacturer | KEB |

| Series | Combivert F5 Compact |

| Model | 07F5C1B-3B0A |

| Application | General purpose |

| Capacity (kW) | 0.75 |

| Output Current (A) | 2.6 |

| Main Power Supply (V) | 400 |

| Phase | 3 |

| Input Voltage | 305-440 VAC |

| Input Frequency | 50/60 Hz |

| Input Current (A) | 3.6 |

| Output Voltage | 0-440 VAC |

| Output Frequency | 0-1600 Hz |

| Output Current (A) | 2.6 |

| Apparent Power (kVA) | 1.8 |

| Enclosure | IP20 |

| EMC Filter | Integrated |

| Analog Inputs | 2 |

| Digital Inputs | 8 |

| Analog Outputs | 2 |

| Relay Outputs | 2 |

| Communication Port | RS232/RS485 (Modbus RTU) |

| Control Method | Sensorless vector control |

| Operating Temperature | -10°C to +45°C |

| Storage Temperature | -25°C to +70°C |

Note: All specifications are as provided by the manufacturer. For detailed technical data, refer to the official KEB datasheet.

Applications

The KEB 07F5C1B-3B0A is a versatile drive suitable for a wide range of industries and applications, including:

• Material handling – Conveyors, hoists, and cranes benefit from precise speed control and high starting torque.
• Pumps and fans – Energy savings through variable speed control in HVAC, water treatment, and irrigation systems.
• Machine tools – High-speed spindles and feed drives require the high output frequency capability of this drive.
• Packaging machinery – Accurate speed and position control for filling, labeling, and wrapping equipment.
• Textile machinery – Smooth acceleration and deceleration for spinning, weaving, and knitting machines.
• Food and beverage – Hygienic design and reliable operation for mixers, conveyors, and processing equipment.
• Automotive – Conveyor systems, test stands, and production line equipment.

With its general-purpose design, the 07F5C1B-3B0A can be used in virtually any application requiring a 0.75 kW, 3-phase AC drive. Its high output frequency makes it particularly suited for applications that require speeds above standard motor base speeds.

Why Choose UbestNine?

At UbestNine, we specialize in providing high-quality new and refurbished industrial automation parts. Here's why customers trust us:

• Quality Assurance – Every refurbished product is tested to ensure it meets manufacturer specifications. New products come directly from authorized sources.
• Competitive Pricing – We offer significant savings compared to OEM prices without compromising on quality.
• Fast Shipping – Most orders ship within 24 hours from our well-stocked warehouse.
• Expert Support – Our knowledgeable team can help you select the right part and answer technical questions.
• Warranty – All products come with a warranty for your peace of mind.
• Easy Returns – If a product doesn't meet your needs, our hassle-free return policy makes it simple to return.

When you choose UbestNine, you get a reliable partner committed to keeping your operations running smoothly.

FAQ

Q: Is the KEB 07F5C1B-3B0A a new or refurbished product?

A: We offer both new and refurbished units. The condition is clearly stated in the product listing. Refurbished units are tested and come with a warranty.

Q: Does this drive come with the digital keypad operator?

A: Yes, the unit includes the 00.F5.060-1000 digital keypad operator with a 5-digit LED display and RS232/RS485 port.

Q: Can this drive be used for high-speed applications?

A: Yes, the output frequency can be set up to 1600 Hz, making it suitable for high-speed motors and spindles.

Q: What communication protocols are supported?

A: The drive has an RS232/RS485 port that supports Modbus RTU, allowing easy integration with PLCs and SCADA systems.

Q: What is the warranty period?

A: Our warranty period varies by product condition. Please contact our sales team for specific warranty details.

Q: Does the drive include an EMC filter?

A: Yes, an integrated EMC filter is included, which helps reduce electromagnetic interference.

Q: What is the input voltage range?

A: The drive accepts 305-440 VAC at 50/60 Hz, making it suitable for European and other 400V-class systems.
